🧰 Devices & Definitions

Definitions you must be able to state

These are the standard definitions (ASA / DAS) used to describe airway difficulty β€” the precise wording matters in the viva.

Difficult mask ventilation
Inability of a trained anaesthetist to maintain SpOβ‚‚ >90% (with 100% Oβ‚‚) or to prevent/reverse signs of inadequate ventilation using a face mask. Graded by the Han scale (1 easy β†’ 4 impossible).
Difficult laryngoscopy
Inability to see any portion of the vocal cords with conventional laryngoscopy β€” i.e. Cormack–Lehane grade 3–4 (see the Scores tab).
Difficult tracheal intubation
Proper insertion of the tube requires multiple attempts (in the presence or absence of tracheal pathology). "Failed intubation" = unable to place the tube after the planned attempts.
Difficult SGA placement
Multiple attempts or failure to place, or to ventilate/oxygenate through, a supraglottic airway.
CICO β€” "can't intubate, can't oxygenate"
The airway emergency: neither intubation nor oxygenation (by mask or SGA) is succeeding. Triggers emergency front-of-neck access (eFONA) β€” scalpel–bougie–tube cricothyroidotomy.
Difficult airway (overall)
The clinical situation in which a conventionally-trained anaesthetist has difficulty with face-mask ventilation, laryngoscopy, intubation, or all three.

The devices β€” what each one is

Face mask

A shaped device sealing over the nose and mouth to deliver oxygen/anaesthetic gases and allow positive-pressure ventilation. Non-definitive (does not protect against aspiration). A good seal needs the correct size, the C-E grip, and often a two-person, two-handed technique with an oral/nasal adjunct. A beard, edentulism and obesity are the classic causes of a leak.

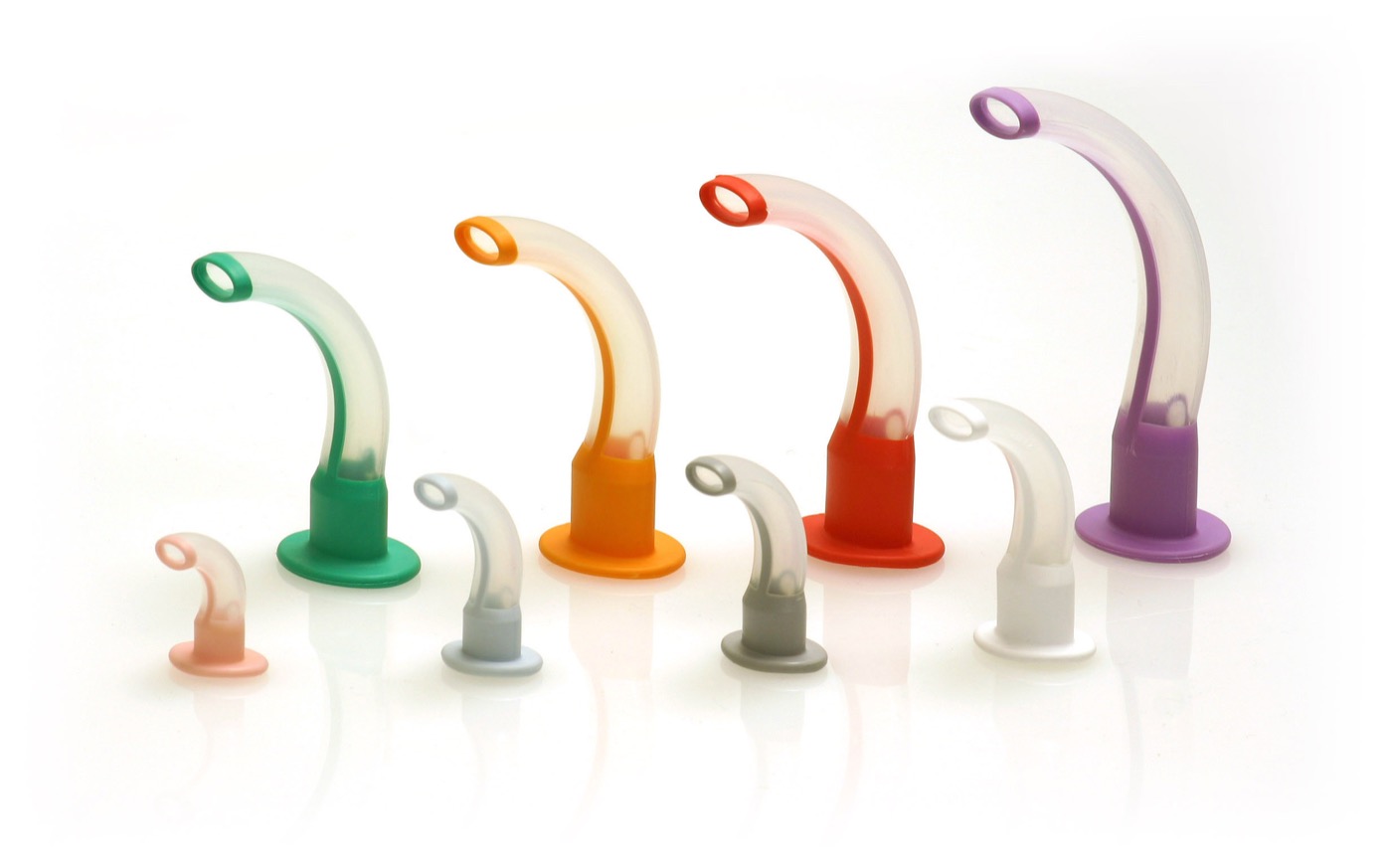

Colour-coded Guedel oropharyngeal airways in a range of sizes
Oropharyngeal (Guedel) airways β€” colour-coded by size.
Intersurgical Ltd, Wikimedia Commons β€” CC BY-SA 3.0.

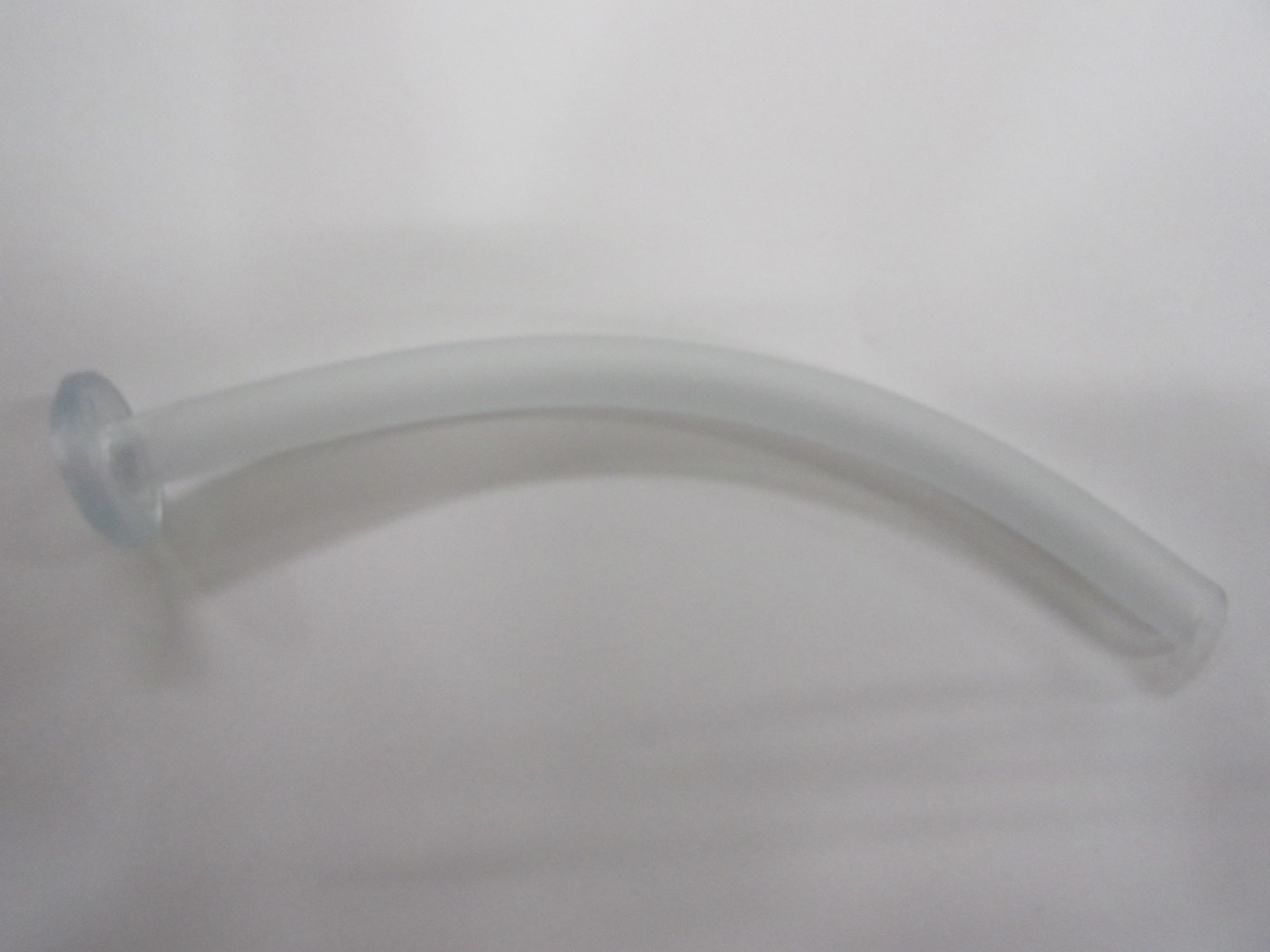

A nasopharyngeal airway
Nasopharyngeal (Wendl) airway β€” soft, better tolerated when the gag reflex is intact.
Wikimedia Commons β€” CC BY-SA 4.0.
Oropharyngeal airway (OPA / Guedel)
A curved rigid airway that holds the tongue off the posterior pharyngeal wall. Sized incisors β†’ angle of the mandible. Inserted upside-down and rotated 180Β° (adults). Not tolerated if the gag reflex is present (risk of laryngospasm/vomiting).
Nasopharyngeal airway (NPA / Wendl)
A soft tube from the nostril to the pharynx; better tolerated in the semi-conscious patient. Sized to the nostril β†’ tragus. Avoid in a suspected base-of-skull fracture.
Supraglottic airway (SGA / LMA)
A device sitting above the glottis that seals around the laryngeal inlet. First-generation (classic LMA) seals only; second-generation (ProSeal, Supreme, i-gel) add a gastric drain port and a higher seal pressure β€” a primary airway, a rescue device and a conduit for intubation.
Tracheal (endotracheal) tube (ETT)
The definitive airway β€” a cuffed tube through the cords into the trachea, protecting against aspiration and allowing controlled ventilation. Sized by internal diameter (β‰ˆ7.0–7.5 mm women, 8.0–8.5 mm men) and confirmed by capnography.
Surgical airway / tracheostomy & cricothyroidotomy
Cricothyroidotomy β€” emergency access through the cricothyroid membrane (scalpel–bougie–tube). Tracheostomy β€” a planned/definitive airway through the tracheal rings (percutaneous or surgical), for prolonged ventilation, weaning or upper-airway obstruction.

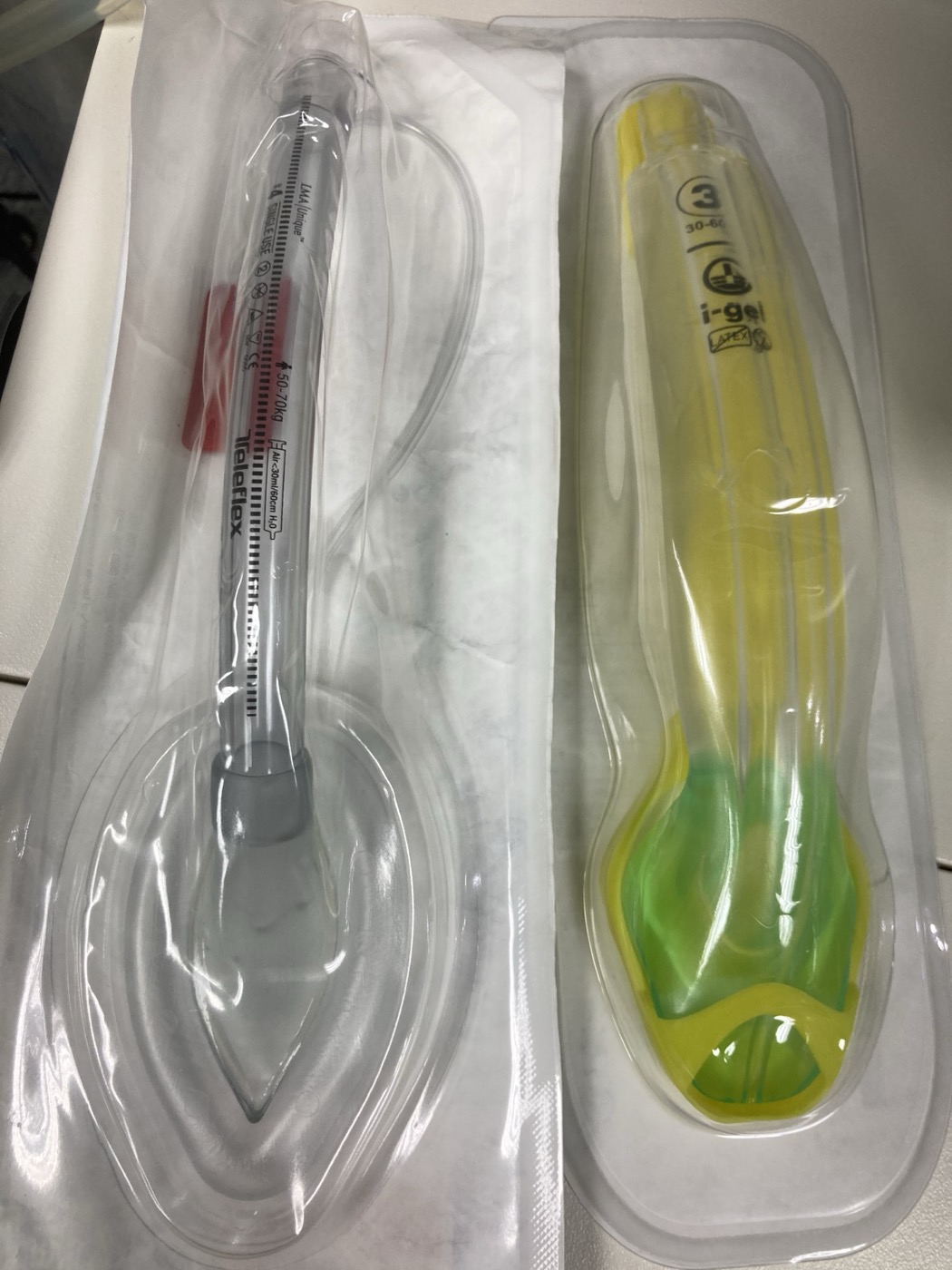

A classic laryngeal mask airway beside an i-gel supraglottic airway
Supraglottic airways β€” a cuffed LMA Unique (left) beside a cuffless second-generation i-gel (right, with its gastric channel).
Wikimedia Commons β€” CC BY-SA 4.0.
πŸͺœ The device ladder β€” from least to most invasive

Face mask (Β± OPA/NPA) β†’ supraglottic airway β†’ direct or video laryngoscopy β†’ flexible bronchoscopic intubation β†’ front-of-neck access. At every rung the priority is oxygenation, not the tube. The stepwise management of failure lives with the guideline algorithms β€” open the Guidelines library β†’
